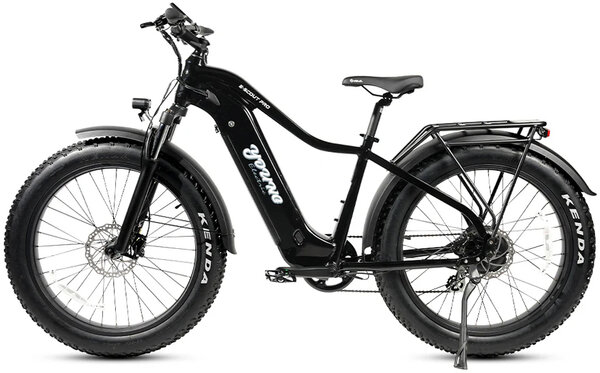

Young Electric E-Scout Pro - 2024
Details
500W Long Range Electric Hunting Bike | 960Wh LG Battery 26’’ All-terrain eBike
Industry Leading 5-year limited warranty
YOUNG ELECTRIC offers the most worry-free post-purchase experience and proudly stands behind its products with an industry leading 5-year limited warranty.
E-SCOUT PRO User manual
Upgraded 48V/20AH 960Wh LG battery
Go Further Between Charges
Improved Frame Design
Safety and Aesthetic
 |
 |
 |
 |
Powerful 500W Brushless Hub Motor
E-Scout Pro adopts a 500W Brushless Hub Motor to gain enough power with speeds reaching up to 20 MPH, helping you conquer any terrain.
Multifunctional HMI Display
Equipped with a Multifunctional HMI Display that presents the necessary information of bike status if the cyclist needs to check during cycling.
Boost and Control
E-Scout Pro adopts a thumb throttle design to help you adjust the pedal assist level easily, taking both safety and convenience into consideration.
Adjustable Shock-absorbing Fork
An adjustable suspension fork is preloaded on E-Scout Pro to provide a flexible and comfortable cycling experience on a variety of terrains.
Flexible Shimano 7-Speed Gearing
Applying the Shimano 7-Speed Gearing system which has smooth gear shifting and enhanced durability, E-Scout Pro is here to make your cycling smooth and enjoyable.
Sensitive Dual Hydraulic Disc Brakes
We adopt sensitive hydraulic disc brakes, which could quickly respond to braking actions to assure your safety in an emergency.
All-Terrain Fat Tires
Equipped with 26*4.0'' fat tires which provide great stability and traction, E-Scout Pro helps riders to handle all off-road terrains effortlessly.
Pre-installed Fenders and Rear Rack
A rear rack and fenders are preloaded to endow your e-bike with multiple functions in daily use, and keep your precious clean even after a long ride.
95% Pre-assembled
For each E-Scout Pro, 95% of the assembly has been set already so that you could assemble your bike quickly and easily even without any experience.
Specifications
| Name | YOUNG ELECTRIC E-SCOUT PRO |
|---|---|

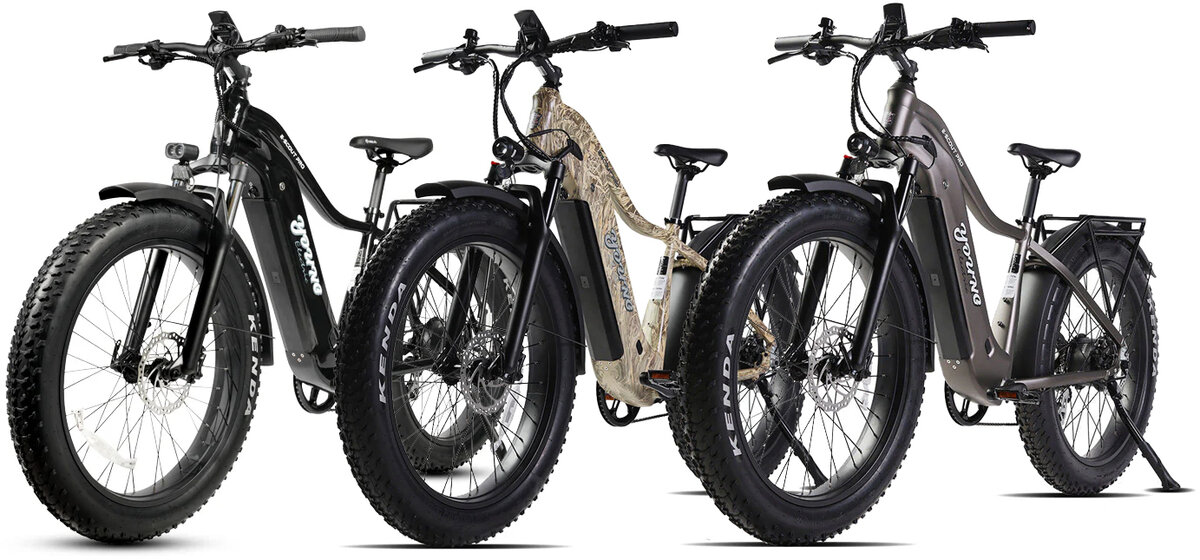

| Color | Matte Gun Metal / Glossy Black /Desert Camo |
| Frame Material | Aluminum alloy |
| Frame Size | Unisex 26'' |
| Motor | 500W rear hub motor |
| Riding Modes | 5 level electric assist |
| Pedal Sensor | Speed sensor |
| Max Speed | 20MPH (32km/h) ,Class 2 |
| Range | Up to 162 km (101miles) , depending on pedal effort |
| Throttle | Thumb throttle |
| Display | 3.5" color matrix HMI display |
| Battery | 48V/20Ah,960Wh Lithium-ion battery with LG cells |
| Charger | 3A |
| Charging Time | Approx. 6-7 hours |
| Shifters | Shimano 7-speed |
| Brakes | Hydraulic disc brake |
| Tires | KENDA 26" x 4.0" fat tires |
| Front Light | 15 LUX headlight |
| Rear Light | Brake rear light |
| Front Fork | Front suspension fork, 80mm travel with lockout and preload adjustment |
| Fenders | Front & rear fenders |
| Rear Rack | YES |
| Max. Load Capacity | 330 lbs |
| Body Length | 76 in |
| Handlerbar Width | 27.5 in |
| Handlerbar Height | 42.1 in |
| Saddle Height | 28.3 - 37.4 in |
| Net Weight | 82 lbs |
| Gross Weight | 113.3 lbs |
| Box Dimensions | 62 x 12 x 31 in |
Videos
How To: Assemble the Young Electric E-Scou
This is a step-by-step guide on how to assemble the E-Scout electric bike.
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Black | 12803021BLK | 210000100804 |
| Matte Gunmetal | 12803021MGM | 210000100806 |
| Desert Camo | 12803021CAMO | 210000100808 |
