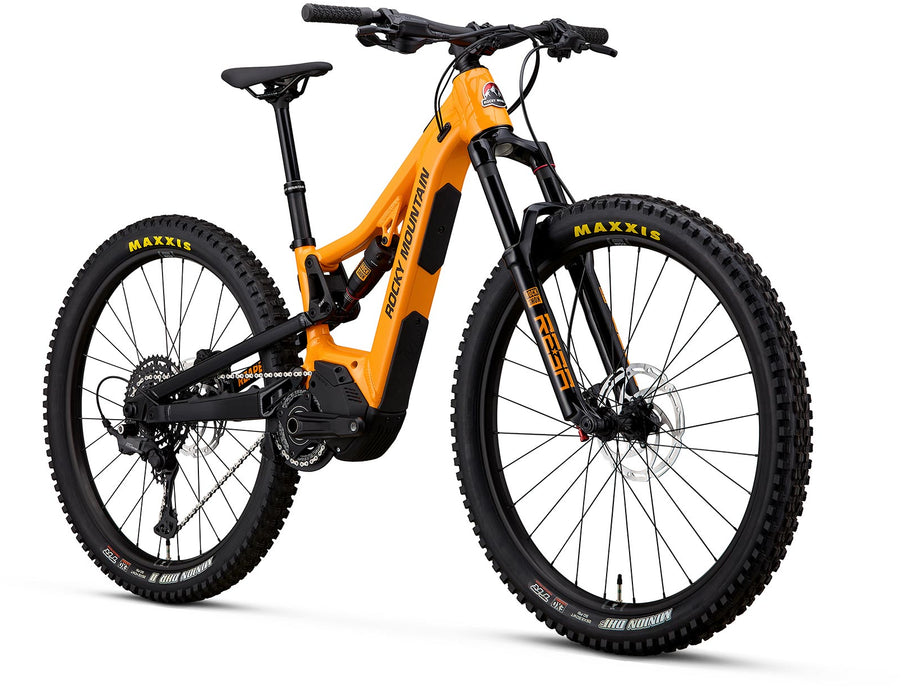

Rocky Mountain Reaper Powerplay 26 Shimano
Details
The Reaper Powerplay 26 is a real, trail-ready electric mountain bike powered by the Dyname S4 Mini to help young riders progress while keeping up with their parents. Offering 40Nm of torque and 300W peak power, kids will have the ability to take on harder trails with enough energy to go back up for more. Parents will have peace of mind by tapping into the Reaper Powerplay 26’s parental controls. Limit both top speed (for motor assist) and power in an easy to navigate set-up.
| Top Tube Horizontal (mm) | 491 |
|---|---|
| Head Tube Angle (deg) | 64 |
| Head Tube Length (mm) | 105 |
| Seat Tube Angle (deg) | 76.5 |
| Seat Tube Length (mm) | 315 |
| Rear Centre (mm) | 410 |
| Bottom Bracket Drop (mm) | 16 |
| Reach (mm) | 355 |
| Stack (mm) | 563 |
| Standover Height (mm) | 750 |
| Wheelbase (mm) | 1076 |
These figures are a rough guide only. Rider proportions, riding style, and personal preferences all factor in choosing the correct bike size. Rocky Mountain always recommends test riding and professional bike fitting at an authorized dealer.
Frame Size: xs
- Inseam: 137 – 155 cm | 4’6" – 5’1"
Specs
| Frame | FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-2™ Adjustable Geometry | 130mm Travel. FORM™ Alloy Rear Triangle |
|---|---|
| Fork | RockShox Reba R 140mm | 40m Offset |
| Rear Shock | RockShox Deluxe Select | Sealed Bearing Eyelet | 20x8mm F Hardware | 170x35mm |
| Rims | WTB ST Light i27 TCS 2.0 Tubeless | 28H / Tubeless Ready - Tape / Valves Incl |
| Hubs | Front Hub: Shimano TC500 | 15x100m | 28H/Rear Hub: Shimano TC500 Boost 148mm | 28H |
| Spokes | 2.0 Stainless |
| Tires | F: Maxxis Minion DHF 2.4 WT EXO Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready |
| Bottom Bracket | Rocky Mountain Sealed - Shimano Compatible |
| Crankset | Rocky Mountain Microdrive 2PC | 30T | SRAM Direct Mount | 24mm Spindle | Crank Length: 155mm |
| Shifters | Shimano CUES 10spd |
| Rear Derailleur | Shimano CUES 10spd |
| Cassette/Freewheel | Shimano CUES 11-48T 10spd |
| Chain | KMC X11-1 |
| Brakes | Tektro HD-J285 | Short Reach Lever | Shimano Pad Compatible |
| Handlebars | Rocky Montain Jr | 640mm Width |25mm rise | 9° Backsweep |5° Upsweep | 31.8 | For 19mm Grips |
| Tape/Grips | SGD Slater JR Lock On |
| Stem | Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm |
| Headset | FSA ZS56|66 Reach Adjust| 5mm Cups Installed | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Seatpost | X Fusion Manic Composite 30.9mm | 125mm |
| Saddle | Rocky Mountain Kids |
| Motor | Dyname S4 Mini Mountain Bike Drive | 300W Max Power | 250W Nominal Power | 40Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada |
| Battery | 240 Wh Fully Integrated Li-Ion |
| Controller/Display | Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration |
| Charger | Rocky Mountain Powerplay Charger V2 | 2A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4) |
* Subject to change without notice.
