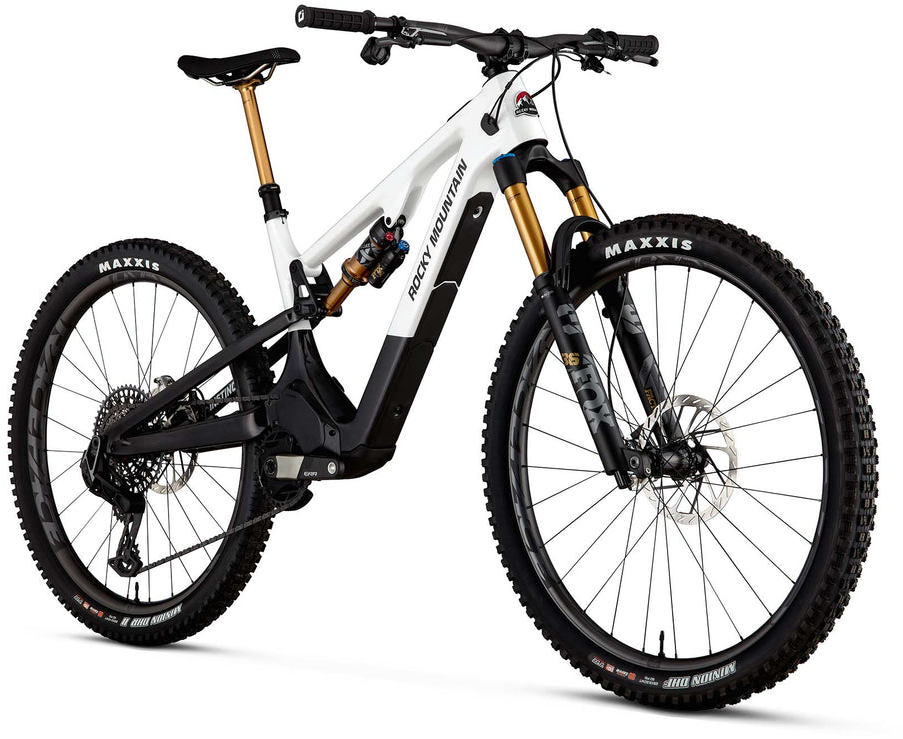

Rocky Mountain Instinct Powerplay SL Carbon 90
Details
The Instinct Powerplay SL Carbon packs a punch in a lightweight package. Powered by the all-new Dyname S4 Lite drive system, this bike rides like a trail bike with the power to explore further than ever before. With adjustable geometry, refined suspension kinematics, and MX compatibility, the Carbon Instinct Powerplay SL delivers unreal levels of playfulness and agility, lap after lap… after lap.
Wheel size:
- Size X-Small: 27.5-inch
- Sizes Small – X-Large: 29-inch
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 566 | 598 | 626 | 658 |
| Head Tube Angle (deg) | 64 | 64 | 64 | 64 |
| Head Tube Length (mm) | 105 | 110 | 125 | 135 |
| Seat Tube Angle (deg) | 77.5 | 77 | 77 | 77 |
| Seat Tube Length (mm) | 365 | 410 | 440 | 470 |
| Rear Centre (mm) | 440 | 440 | 450 | 450 |
| Bottom Bracket Drop (mm) | 32 | 32 | 32 | 32 |
| Reach (mm) | 430 | 455 | 480 | 510 |
| Stack (mm) | 614 | 618 | 632 | 641 |
| Standover Height (mm) | 790 | 813 | 813 | 813 |
| Wheelbase (mm) | 1203 | 1230 | 1272 | 1306 |
| X-Small | 147.5 - 157.5 cm / 4'7" - 52" |
|---|---|
| Small | 152.5 - 167 cm / 5'0" - 5'6" |
| Medium | 162.5 - 177.5 cm / 5'4" - 5'10" |
| Large | 172.5 - 188 cm / 5'8" - 6'2" |
| X-Large | 183 - 198 cm / 6'0" - 6'6" |
Specs
| Frame | SMOOTHWALL™ Carbon | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry | 145mm Travel | SMOOTHWALL™ Carbon Rear Triangle |
|---|---|
| Fork | Fox 36 Float EVOL GRIP X2 Factory Series 150mm | 27.5 = 37mm Offset | 29 = 44mm Offset |
| Rear Shock | SM-XL: Fox Float X Factory Series | 230x57.5mm | XS: Fox Float Factory Series | 210x52.5mm | Sealed Bearing Eyelet | 25x8mm F Hardware | Size-Specific tune in FAQ |
| Tires | Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready | Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready | Tubeless Set Up | Sealant Incl |
| Bottom Bracket | Race Face BB92 30mm |
| Crankset | Race Face ERA Cinch | 34T T-Type Ring | 30mm Spindle | XS - XL = 165mm |
| Shifters | Sram AXS Pod Ultimate Controller |
| Rear Derailleur | Sram X0 Eagle Transmission Wireless |
| Cassette/Freewheel | Sram X0 Eagle Transmission 10-52T |
| Chain | Sram X0 Transmission |
| Brakes | Sram Code Ultimate Stealth 4 Piston | Metal Pads |
| Handlebars | Race Face ERA | XS = 760mm | SM - XL = 780mm Width | 20mm Rise | 8° Backsweep | 5° Upsweep | 35mm Clamp |
| Tape/Grips | ODI Elite Pro Lock On |
| Stem | Race Face Turbine R | 0° Rise | All Sizes = 40mm |
| Headset | FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race |
| Seatpost | Fox Transfer Factory Series 30.9mm | XS = 120mm | SM = 150mm | MD = 180mm | LG - XL = 210mm |
| Saddle | WTB Volt Fusion Form 142 | Titanium Rails |
| Motor | Dyname S4 Lite Mountain Bike Drive | 250w Nominal Power | 550w Max Power | 65Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada |
| Battery | 480 Wh Removable Integrated Li-Ion |
| Controller/Display | Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration |
| Charger | Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector |
* Subject to change without notice.
