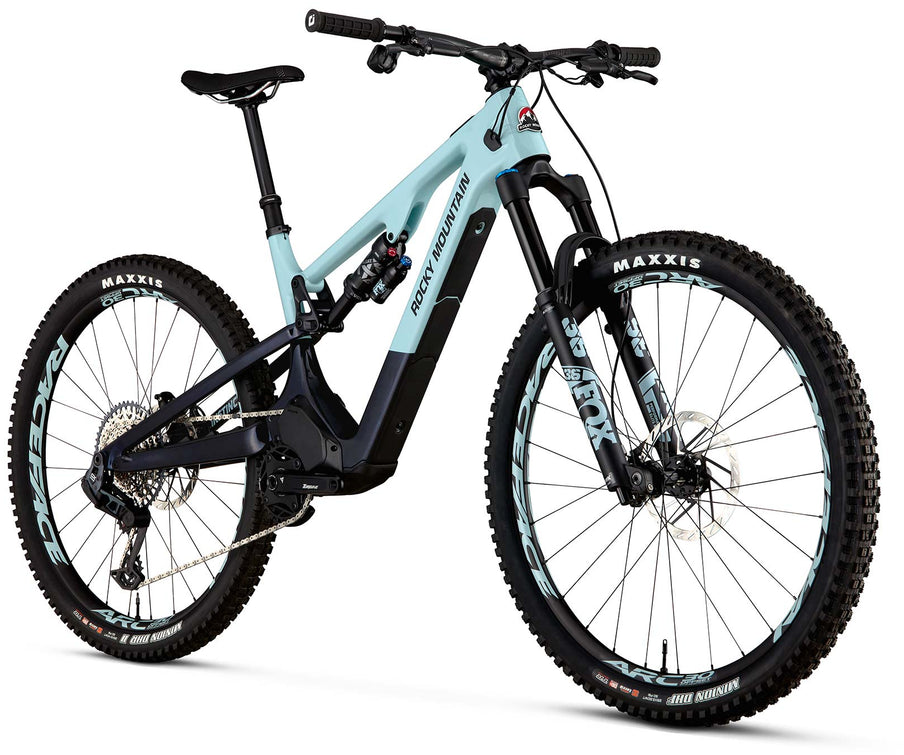

Rocky Mountain Instinct Powerplay SL Carbon 70
Details
The Instinct Powerplay SL Carbon packs a punch in a lightweight package. Powered by the all-new Dyname S4 Lite drive system, this bike rides like a trail bike with the power to explore further than ever before. With adjustable geometry, refined suspension kinematics, and MX compatibility, the Carbon Instinct Powerplay SL delivers unreal levels of playfulness and agility, lap after lap… after lap.
Wheel size:
- Size X-Small: 27.5-inch
- Sizes Small – X-Large: 29-inch
| sm | md | lg | xl | |
|---|---|---|---|---|
| Top Tube Horizontal (mm) | 566 | 598 | 626 | 658 |
| Head Tube Angle (deg) | 64 | 64 | 64 | 64 |
| Head Tube Length (mm) | 105 | 110 | 125 | 135 |
| Seat Tube Angle (deg) | 77.5 | 77 | 77 | 77 |
| Seat Tube Length (mm) | 365 | 410 | 440 | 470 |
| Rear Centre (mm) | 440 | 440 | 450 | 450 |
| Bottom Bracket Drop (mm) | 32 | 32 | 32 | 32 |
| Reach (mm) | 430 | 455 | 480 | 510 |
| Stack (mm) | 614 | 618 | 632 | 641 |
| Standover Height (mm) | 790 | 813 | 813 | 813 |
| Wheelbase (mm) | 1203 | 1230 | 1272 | 1306 |
| X-Small | 147.5 - 157.5 cm / 4'7" - 52" |
|---|---|
| Small | 152.5 - 167 cm / 5'0" - 5'6" |
| Medium | 162.5 - 177.5 cm / 5'4" - 5'10" |
| Large | 172.5 - 188 cm / 5'8" - 6'2" |
| X-Large | 183 - 198 cm / 6'0" - 6'6" |
Specs
| Frame | SMOOTHWALL™ Carbon | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry | 145mm Travel | SMOOTHWALL™ Carbon Rear Triangle |
|---|---|
| Fork | Fox 36 Float EVOL GRIP X Performance Elite Series 150mm | 27.5 = 37mm Offset | 29 = 44mm Offset |
| Rear Shock | SM-XL: Fox Float X Performance Elite Series | 230x57.5mm | XS: Fox Float Performance Elite Series | 210x52.5mm | Sealed Bearing Eyelet | 25x8mm F Hardware | Size-Specific tune in FAQ |
| Rims | Race Face ARC 30 | 28H | Tubeless Set Up | Sealant Incl |
| Hubs | Front Hub: Novatec D791SB Sealed Boost 15mm/Rear Hub: DT Swiss 370 Boost 148mm | 18T Star-Ratchet |
| Spokes | DT Swiss Competition 2.0/1.8/2.0 |
| Tires | Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready | Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready | Tubeless Set Up | Sealant Incl |
| Bottom Bracket | Race Face BB92 30mm |
| Crankset | Race Face Turbine Cinch | 34T T-Type Ring | 30mm Spindle | XS - XL = 165mm |
| Shifters | Sram AXS Pod Controller |
| Rear Derailleur | Sram GX Eagle Transmission Wireless |
| Cassette/Freewheel | Sram GX Eagle Transmission 10-52T |
| Chain | Sram GX Eagle Transmission |
| Brakes | Sram Code Silver Stealth 4 Piston | Metal Pads |
| Handlebars | Race Face Turbine | XS = 760mm | SM - XL = 780mm Width | 20mm Rise | 8° Backsweep | 5° Upsweep | 35mm Clamp |
| Tape/Grips | ODI Elite Pro Lock On |
| Stem | Rocky Mountain 35 CNC | 0° Rise | All Sizes = 40mm |
| Headset | FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race |
| Seatpost | Fox Transfer Performance Elite Dropper 30.9mm | XS - SM = 120mm | MD = 150mm | LG = 180mm | XL = 210mm |
| Saddle | WTB Volt Fusion Form 142 | Cromoly Rails |
| Motor | Dyname S4 Lite Mountain Bike Drive | 250w Nominal Power | 550w Max Power | 65Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada |
| Battery | 480 Wh Removable Integrated Li-Ion |
| Controller/Display | Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration |
| Charger | Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector |
* Subject to change without notice.
